Elektro Kosmos Kosmonaut Synthesizer – Analog Synth from Switzerland

SYNTH ANATOMY uses affiliation & partner programs (big red buttons) to finance a part of the activity. If you use these, you support the website. Thanks!

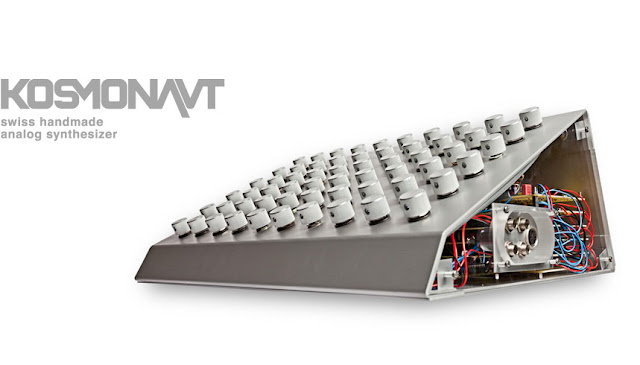

Just found an interesting analog hardware Synthesizer from Switzerland. It has quite a nice design and comes without a display. Even this Synth has a lot of knobs, it’s interesting how easy you can tweak the sounds. From the features, I think this will be a big beast of an analog Synthesizer. There is no yet audio demo on youtube but the developer has some sound demos on the official website. The synth seems me already announced in 2012 (Facebook picture) but I hope they will release it one day.







Features:
VCO 1:
  • Waveforms: Sin, Saw, Tri, Pulse + PWM, W. Noise, C.Noise
  • FM
  • VCO2 Sync
  • Range 10.7 Hz – 23KHz
VCO 2:
  • Waveforms: Sin, Saw, Tri, Pulse + PWM, W.Noise, C.Noise
  • FM
  • VOL. RMO

VCF 1 and VCF 2:
  • Multimode VCF
  • LP 12dB
  • BP 6dB
  • HP 12dB
  • Notch 6dB
  • Extern In



ENV 1

  • Multimode ENV
  • 6 ENV Modes
  • (Mode-1 VCA1 + VCA2 ADSR)
  • (Mode-2 VCA1 + VCA2 AD)
  • (Mode-3 VCF1 + VCF2 ADSR)
  • (Mode-4 VCF1 + VCF2 AD)
  • (Mode-5 VCA1 + VCF1 ADSR)
  • (Mode-6 VCA1 + VCF1 AD)



ENV 2
  • Multimode ENV
  • 6 ENV Modes
  • (Mode-1 VCA2 + VCA1 ADSR)
  • (Mode-2 VCA2 + VCA1 AD)
  • (Mode-3 VCF2 + VCF1 ADSR)
  • (Mode-4 VCF2 + VCF1 AD)
  • (Mode-5 VCA2 + VCF2 ADSR)
  • (Mode-6 VCA2 + VCF2 AD)


VCA 1, Exp.
VCA 2, Exp.

LFO 1

  • Range 1HZ – 10KHz
  • Waveform Sin, Saw UP, Saw DO, Tri, Pulse
  • Midi-CC to CV

LFO 2

  • Range 1HZ – 10KHz
  • Waveform Sin, Saw UP, Saw DO, Tri, Pulse
Sample and Hold
Mixer, VCA1 + VCA2

Master Volume


RMO, Ring modulator, EXT in + VCO
Mixer, VCA1 + VCA2 + RMO
Potentiometer 46
Rotary Switch 14
Midi Learn Button, Rev. Note/0V + Midi Controller Setup
1 Midi IN, 2 Line IN, 1 Stereo IN CV/GATE, 1 Line Mono OUT
5 x LED, Power, LFO 1+2, ENV 1+2
Power Supply, 100V – 240V AC / 35W
L x B x H, 440 mm x 310 mm x 170 mm
Weight 6,8 kg
Fully Handmade
No Mechanical Connection inside







































































More Informations here: Elektrokosmos Kosmonaut Synthesizer
