Plankton Electronics ANTS! Semi-Modular Analog Synthesizer Now Available For Pre-Order

SYNTH ANATOMY uses affiliation & partner programs (big red buttons) to finance a part of the activity. If you use these, you support the website. Thanks!

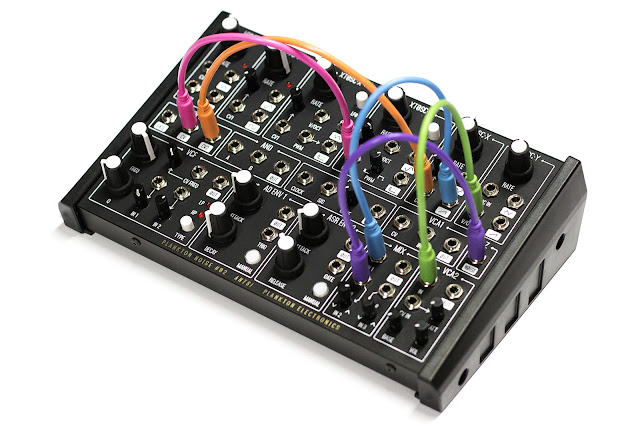

Plankton Electronics announced that users can now pre-order their new ANTS! semi-modular analog Synthesizer and will be shipping soon. ANTS! is a very interesting new pure analogue desktop synth with more than 50 patch points, 19 knobs for direct sound access, thousands of combinations and infinite possibilities of modulation. For me, a very intelligent designed compact synth with a lot of different sound design possibilities. The internal Midi to CV converter allows you also to create melodies with this devices. The ANTS! sounds great and I hope I can test it one day for my channel.







Features:
  • 27 inputs, 24 outputs
  • Analog circuitry
  • Eurorack friendly (voltage)
  • 4 OSC’s (2 switchable to LFO)
  • 2 LFO’s
  • LP/HP Voltage Controlled Filter
  • 1 Triggered A/D Envelope
  • 1 Gated A/S/R Envelope
  • 2 VCA’s
  • 1 Mixer with Attenuverter’s
  • White noise generators
  • Midi to CV
  • Logic Gate
  • Sample and Hold

Power

  • 12 Vac 1A
  • Included power supply
Materials
  • Rolled steel case
  • Plastic side covers
  • FR4 panel
  • Soft-touch knobs

Oscillators
  • V/oct inputs
  • +/- 4V outputs
  • Triangle core
  • Triangle, sine, square, sawtooth and PW waves
  • Sync In OSC Y
  • 2 switchable to LFO
  • PWM In on XTOSC X
  • PWM Knob on XTOSC Y

LFO’s
  • +/-4V Outputs
  • Triangle core
  • Triangle, sine & square waves
  • Range: 19sec – 30HZ
  • Sync In on LFO X
VCF
  • Resonant analog filter
  • High pass / Low pass
  • 2 input mixer with distortion
  • Voltage controlled frequency

Mixer
  • 3 Inputs
  • 2 Attenuverters

AD Env1
  • Triggered Envelope
  • Manual control
  • Trig In
  • Attack: 0.9 msec – 1 sec
  • Decay: 3 msec – 5 sec

ASR Env2
  • Gated envelope
  • Manual control
  • Gate in
  • Attack: 5 msec – 10 sec
  • Release: 1 msec – 4 sec

VCA’s
  • 2 Voltage controlled amplifiers
  • “BASE” and “VOLUME” on VCA1

AND Gate
  • 2 Input Logic Gate
  • 0 to 5V

Midi to CV
  • 1-8 Channel select
  • Gate out (Note on)
  • CV (Note) out
  • CV2 out (2nd note or velocity)


Plankton Electronic ANTS! is now available for pre-order for 490€ excl. VAT


More information here: Plankton Electronics ANTS!
